POLLUTION CONTROL

This is one of our main specialisation i.e. DUST SUPPRESSION. We work with different types of spraying systems in different types of sectors and zones. Air-water mixed or only water spray atomised either internally or externally in a nozzle is manufactured and supplied as a Dry fog System. MOC - Grades of SS or Brass. Video to be provided soon

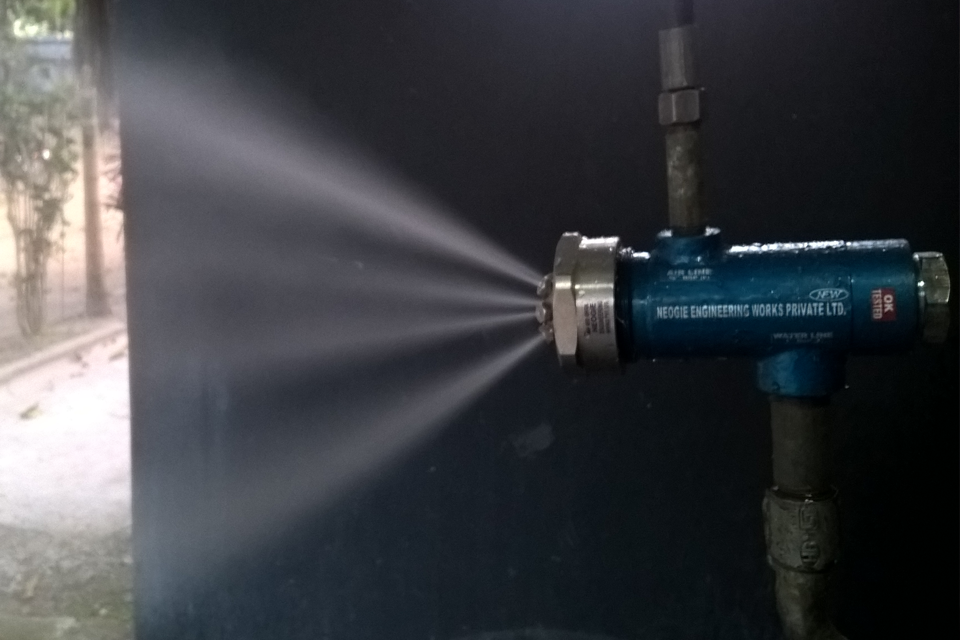

AIR WATER HEAVY FOGGER

Heavy duty dense air water foggers, ideal for dust suppression in large areas, viz track hoppers, grizzly hoppers, wagon tipplers. MOC - SS AND MS CASTING.

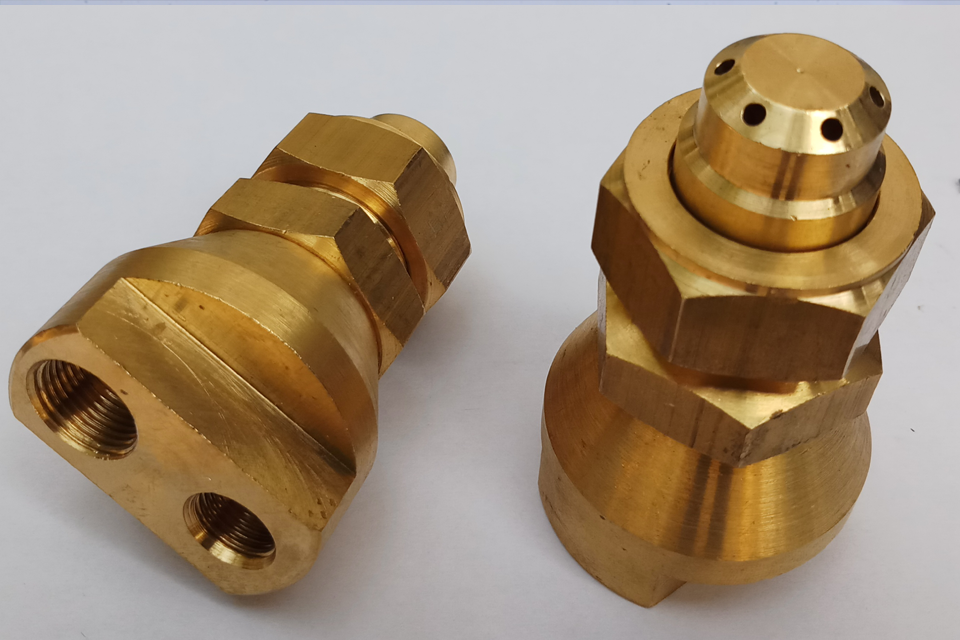

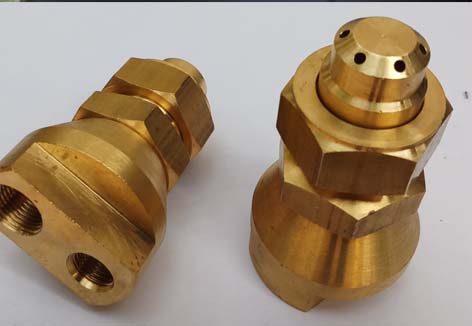

DRY FOG/ AIR MIST/ AIR AUTOMIZING NOZZLES

Atomized water droplets, blown by air dampens dust particles and precipitates them. System requires clean air and water for proper functioning. They come with accessories such as manifold, pressure gauge, ball valve , rubber hose. According to client requirement the number of nozzles in a header can be varied.
End Connection :- WATER 3/8" BSP (F) - AIR 1/4" BSP (F)
Material :- BRASS
Water Pressure :- 1 - 3 Kg /sq. cm
Water Volume :- 1 - 2 LPM
Air Pressure :- 4 - 5 Kg /sq. cm
Air Volume :- 300 - 330 LPM

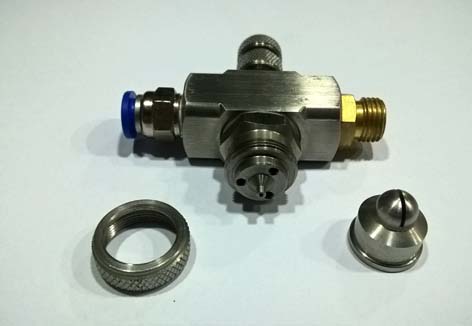

DUAL FLUID NOZZLE WITH FILTER INLET

Finely atomised spray nozzle with air and water mix comes with or without output spray regulator. MOC - Grades of SS.

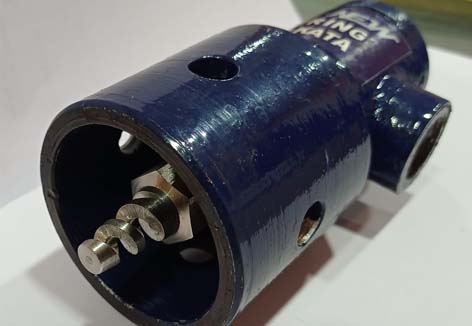

EXTERNAL MIX TYPE (OPP ENTRY)

This type of nozzle has fine atomisation where the mixing of air and water is done outside the nozzle body i.e. externally.
End Connection :- 9/16" UNF (F) FOR AIR & 1/8" UNF (F) FOR WATER
Material :- BRASS, SS 316
Application :- Dust Suppression
Water Pressure :- 0.5 kg/sq. cm
Water Volume :- 0.2 - 0.5 LPM
Air Pressure :- 4 - 4.5 Kg / sq. cm
Air Volume :- 130 - 150 LPM

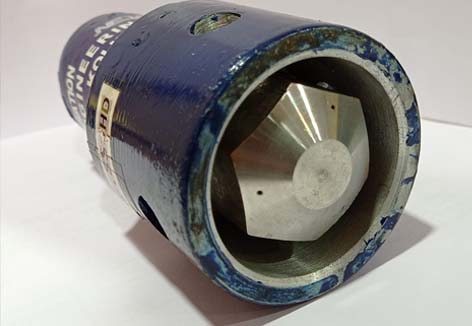

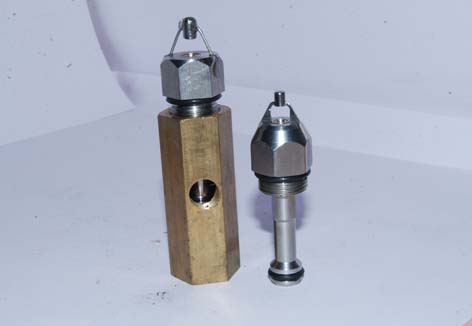

EXTERNAL MIX TYPE (RIGHT ANGLED ENTRY)

This type of nozzle has fine atomisation where the mixing of air and water is done outside the nozzle body i.e. externally. This type is also called DFDS system or Resonator type system.
End Connection :- 9/16" UNF (F) FOR AIR & 1/8" UNF (F) FOR WATER
Material :- BRASS, SS 316
Water Pressure :- 0.5 kg/sq. cm
Water Volume :- 0.2 - 0.5 LPM
Air Pressure :- 4 - 4.5 Kg / sq. cm
Air Volume :- 130 - 150 LPM

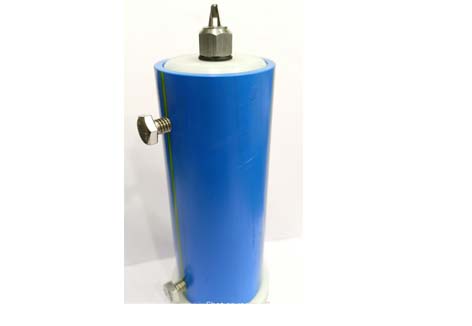

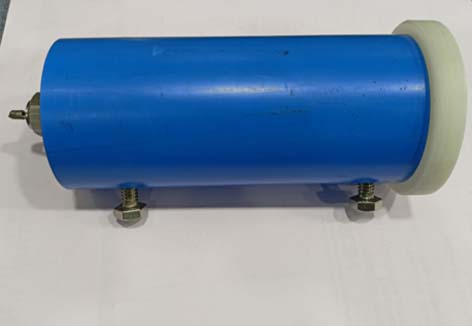

EXTERNAL MIX TYPE (WITH PVC COVER)

This type of nozzle has fine atomisation where the mixing of air and water is done outside the nozzle body i.e. externally. This type is also called DFDS system or Resonator type system. It's a resonator System which comes with an Outer housing System made of PVC Socket and Pvc outer covering body for heat and dust resistance and longevity.
End Connection :- 9/16" UNF (F) FOR AIR & 1/8" UNF (F) FOR WATER
Material :- BRASS, SS 316
Water Pressure :- 0.5 kg/sq. cm
Water Volume :- 0.2 - 0.5 LPM
Air Pressure :- 4 - 4.5 Kg / sq. cm
Air Volume :- 130 - 150 LPM

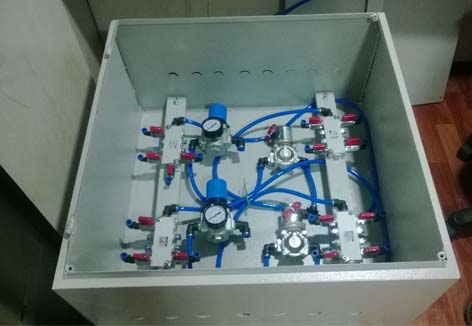

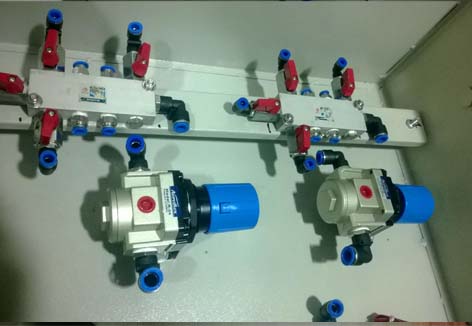

FLOW CONTROL BOX

Flow control box for regulating DFS systems

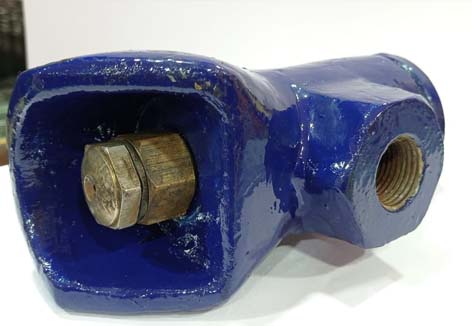

HOODED BODY WATER NOZZLE

This is a type of only water nozzle which comes with an outer hood. The type of nozzle varies as per client requirement depends on application or zone.
End Connection :- 1/2" BSP (F), 1" BSP (F) AS REQUIRED
Material :- BODY IS MADE OF C. I., OR ALUMINIUM CASTING, NOZZLE IS MADE OF BRASS AND THE FILTER IS MADE OF SS 304
Application :- Dust Suppression or Any kind of finely atomised water spray requirement
Air Pressure :- 2.8-3 kg/sq. cm
Air Volume :- 3 - 10 LPM

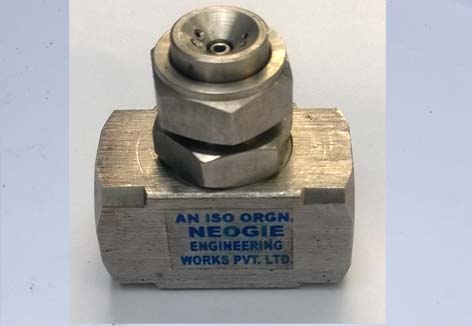

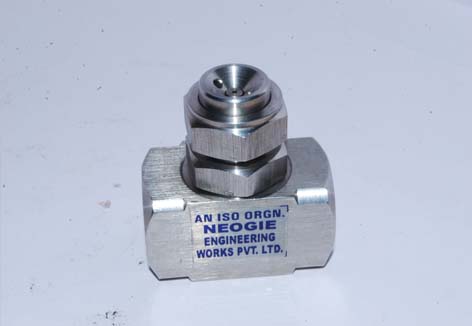

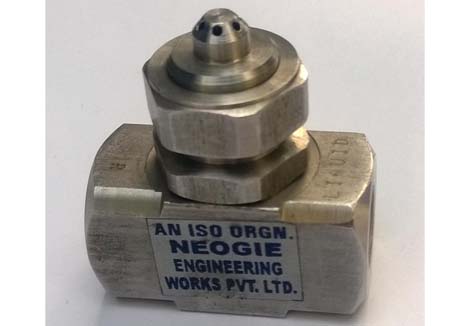

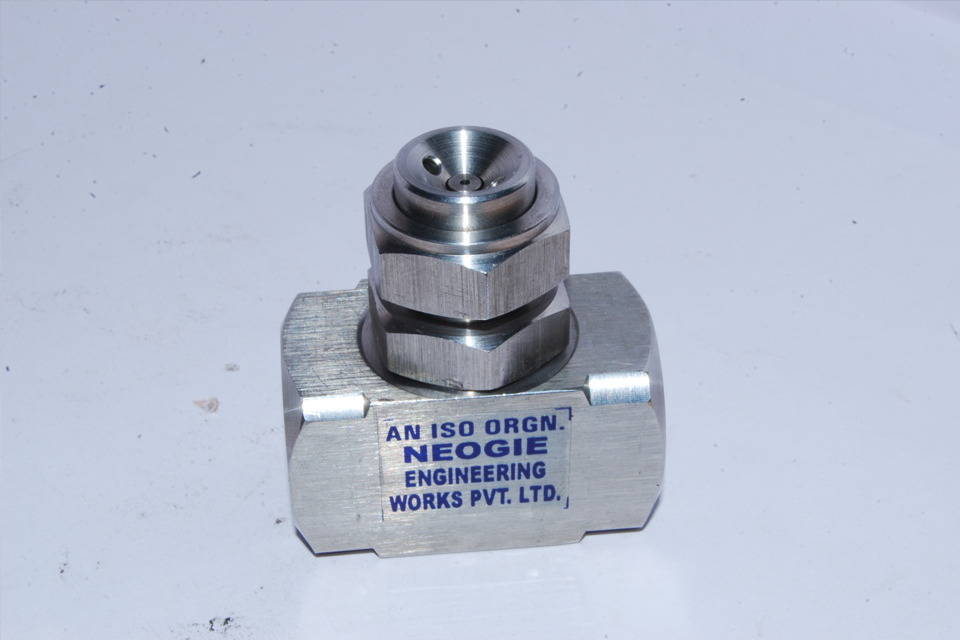

INTERNAL MIX TYPE (OPP ENTRY)

These are widely used in dust suppression where the air and water is mixed internally and finally sprays in finely atomised droplets of water.
End Connection :- 1/4" , 3/8", 1/2" BSP / BSPT (F)
Material :- SS 316, SS 310, BRASS
Application :- Pollution Control at Transfer Points and Junction Points, Mystification, Humidification and Cooling.
