FOG JET NOZZLES
Standard Fog Jet Nozzles produce a dense full cone spray pattern with a wide coverage. These spray nozzles can be replaced as and when required. Fog Jet Nozzles are of two types . CLUSTER TYPE AND NON CLUSTER TYPE .
Product

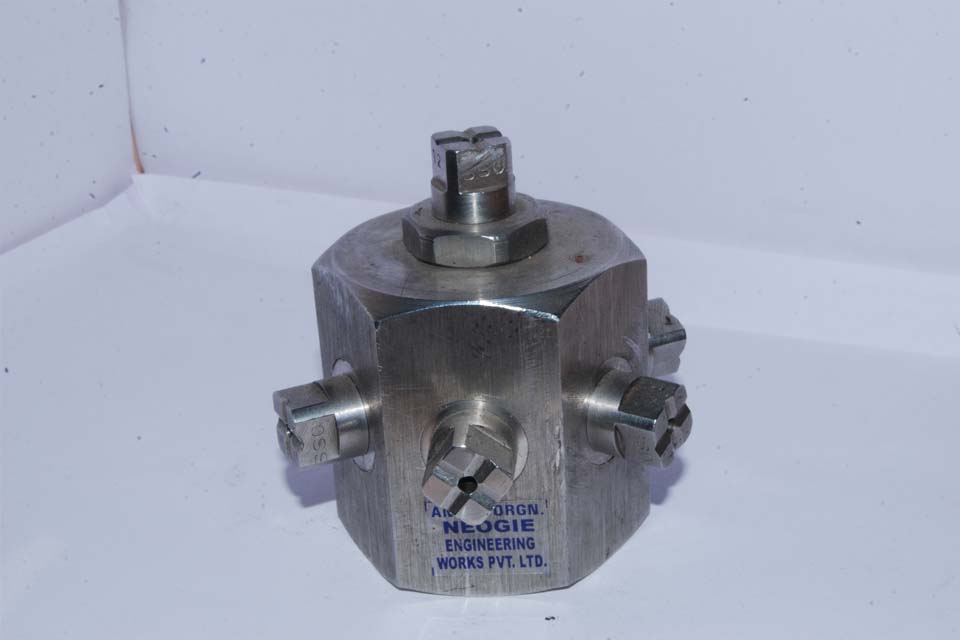

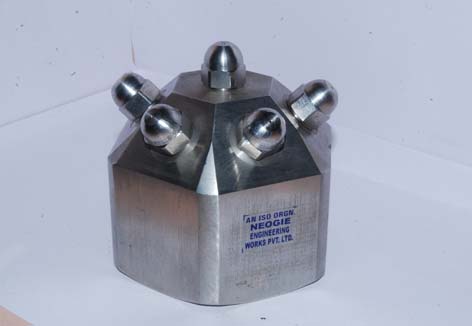

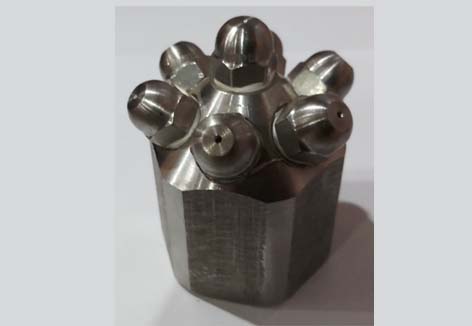

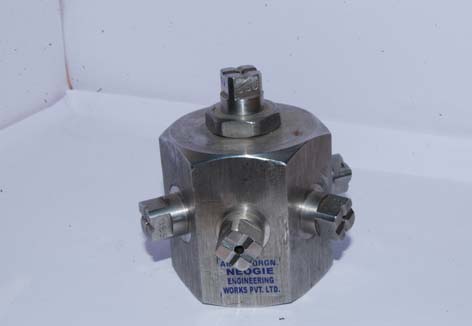

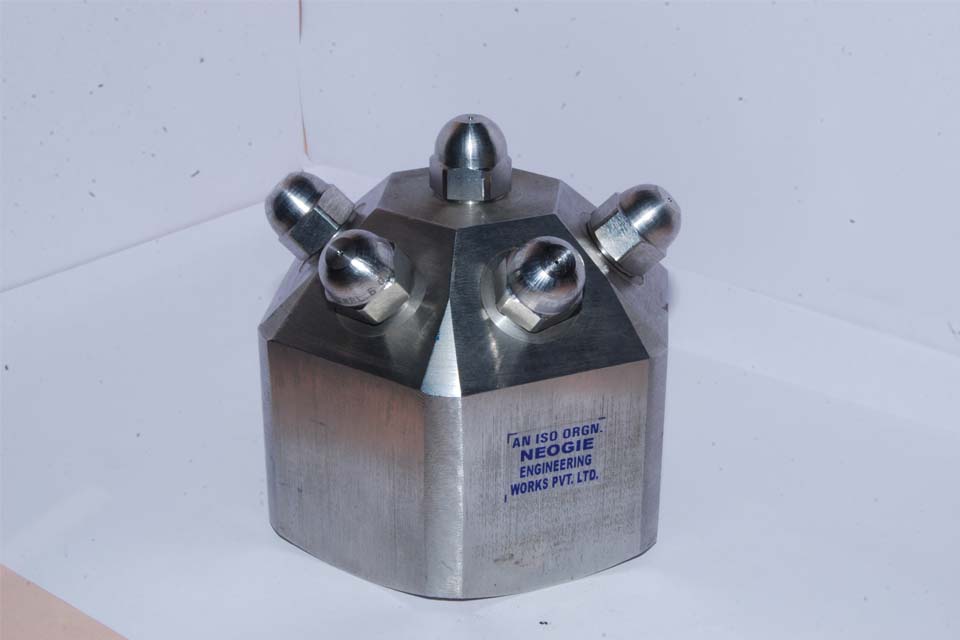

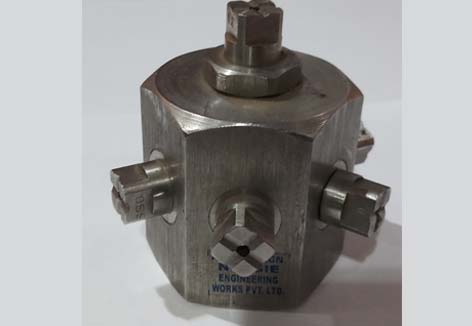

CLUSTER TYPE FOG JET NOZZLES
End Connection : 1” NPT/BSP (F), 11/2” NPT/BSP (F)
Material : BRASS, SS 304/316
Application : Gas Cleaning & Cooling, Dust Suppression, Product Cooling, Fire Protection.
| NOZZLE TYPE PSIG | CAPACITY L.P.M. | ||
|---|---|---|---|
| 60 PSIG | 80 PSIG | 100 PSIG | |
| 1” NF – 32 | 200 | 220 | 258 |
| 1 ½” NF – 40 | 240 | 284 | 314 |
| 1 ½” NF – 50 | 308 | 348 | 390 |

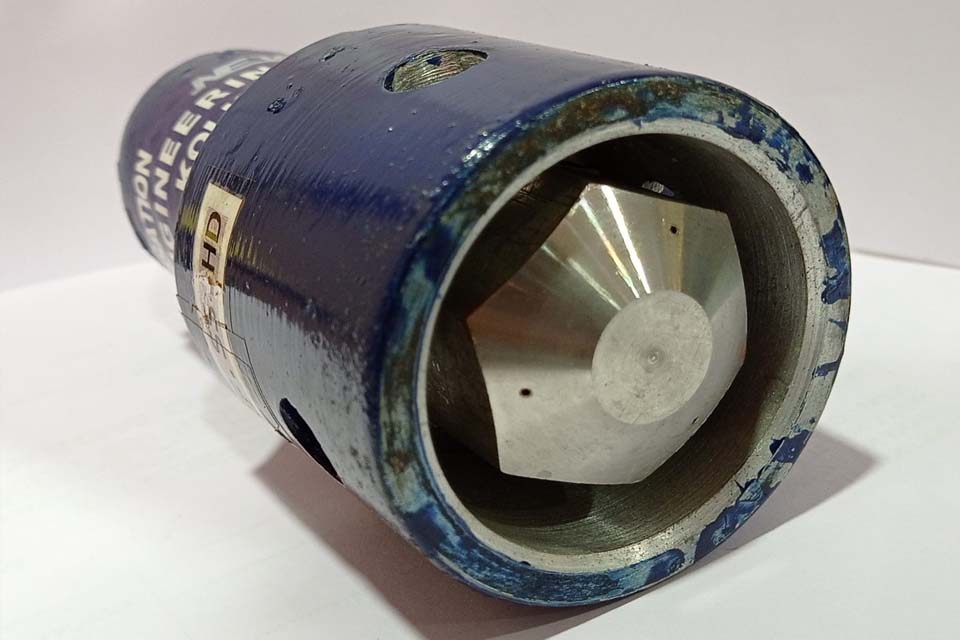

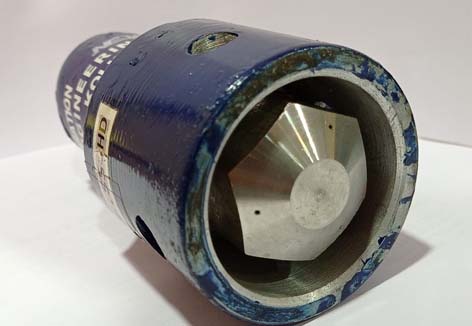

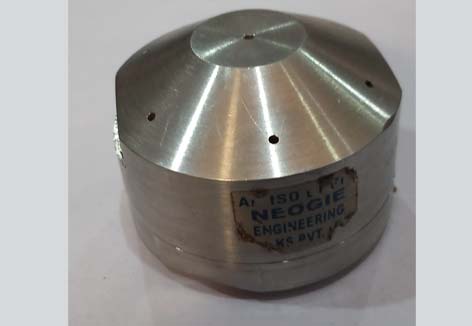

NON- CLUSTER TYPE FOG JET NOZZLES (MULTIPLE ORIFICE FOG JET NOZZLE)
End Connection : 3/4" NPT/BSP (F), 1” NPT/BSP (F) OR ANY DESIRED END CONNECTION.
Material : BRASS, SS 304/316
Application : Fire Protection, Gas Scrubbers, Dust Suppression, Product Cooling & Washing.
