FLAT JET NOZZLES
Standard Flat Jet Nozzles produce a flat spray pattern with high impact and having spray angles of 50 Degrees to 120 Degrees. These nozzles also provide unobstructed flow passages to minimize clogging.
Product

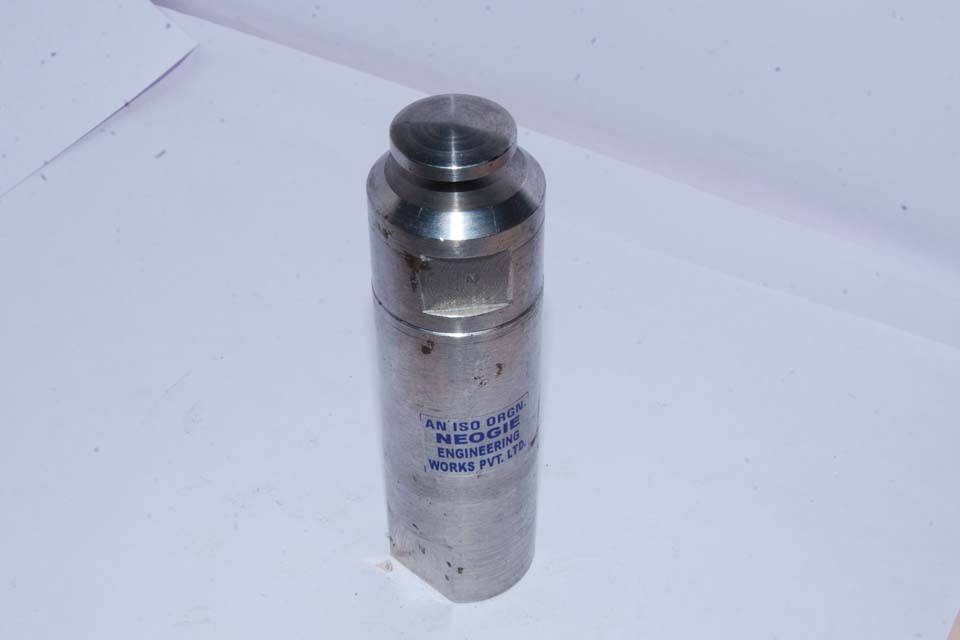

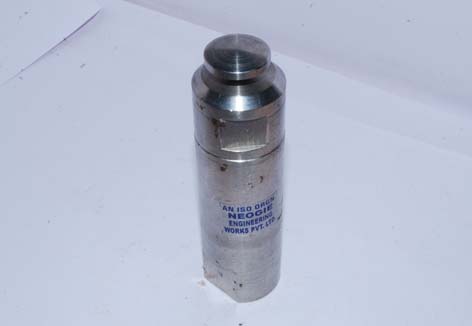

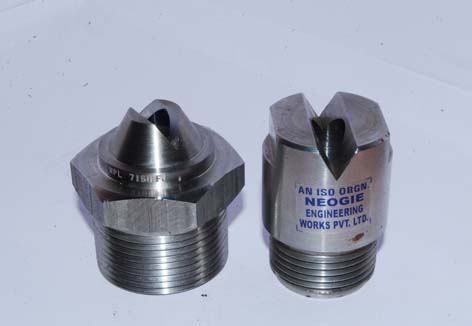

DEFLECTO JET NOZZLE
End Connection : 1/2" BSP/NPT (M/F), 3/4' BSP/NPT (M/F)
Material : SS 304/316
Application : Surround Cooling, Water Screen and Beautification

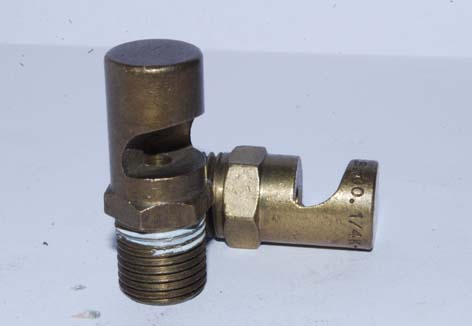

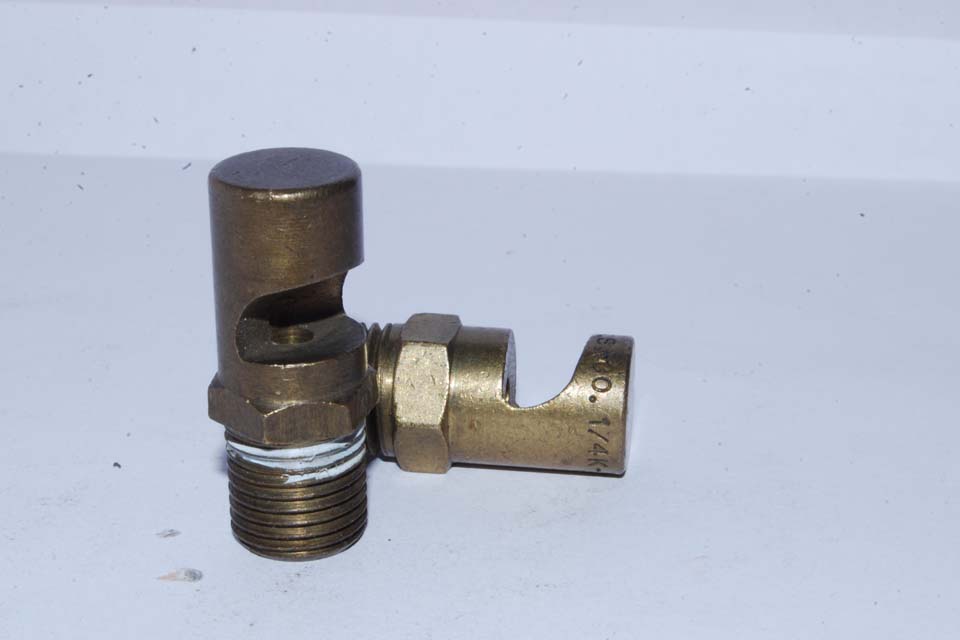

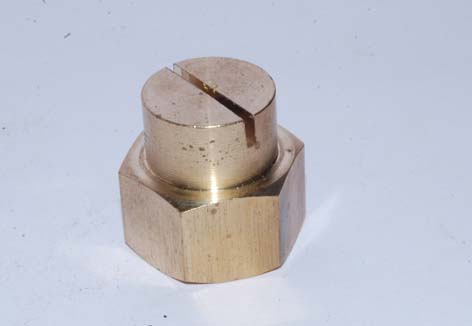

DEFLECTO TYPE NOZZLES
End Connection : 1/8” NPT/BSP (M). 3/8” NPT/BSP (M)
Material : : BRASS, SS 304/316
Application : Forming Water Screens, Washing Coal, Product Washing, Conveyor Belt Cooling.

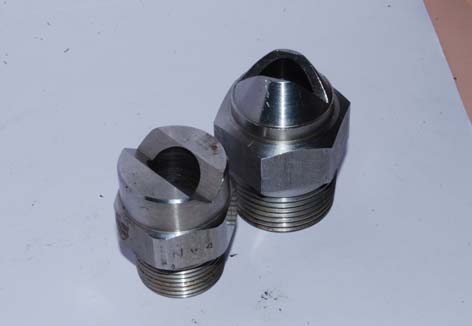

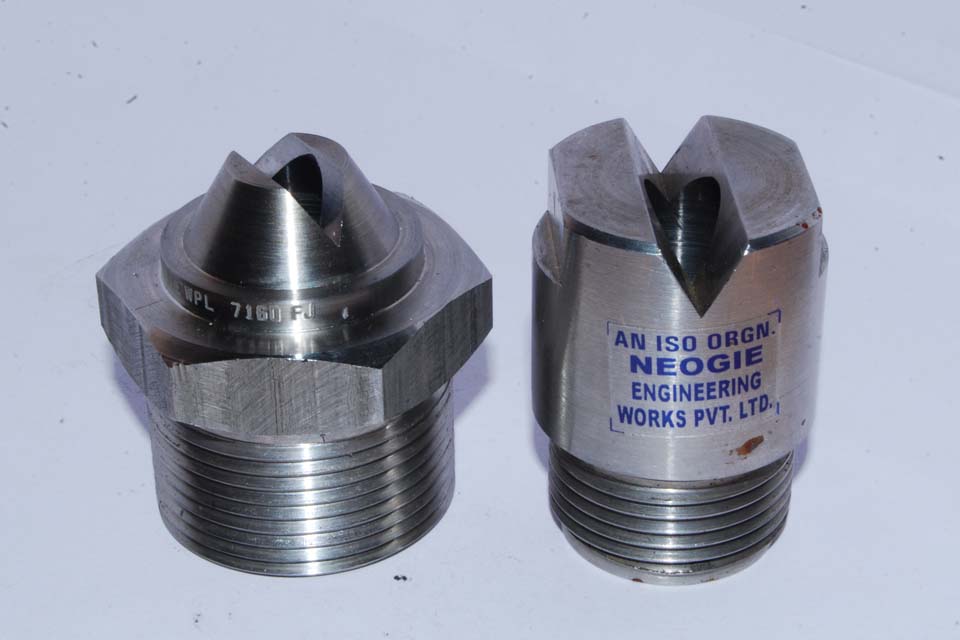

LARGE CAPACITY NOZZLES
End Connection : 1" NPT TO 2” NPT
Material : BRASS OR SS 304/316
Application : De scaling, Degreasing and Rinsing, Spray Cooling, Sand, Coal and Gravel Washing, Air
Strip Washing and Cleaning.
| NOZZLE TYPECAPACITY L.P.M. | SPRAY ANGLE | ||||
|---|---|---|---|---|---|
| 3 BAR | 6 BAR | 10 BAR | 6 BAR | 14 BAR | |
| NLV - 1 | 200 | 280 | 350 | 50 Deg | 55 Deg |
| NLV - 2 | 230 | 325 | 420 | 50 Deg | 55 Deg |
| NLV - 3 | 600 | 850 | 105 | 50 Deg | 55 Deg |
MEDIUM CAPACITY NOZZLES
End Connection : 1/8” NPT TO 3/4" NPT
Material : BRASS, SS 304/316
Application : Metal Cleaning and Processing, Spray Coating, Rolls Cooling, Decaling.
| NOZZLE TYPECAPACITY L.P.M. | SPRAY ANGLE | |||||
|---|---|---|---|---|---|---|
| 3 BAR | 4 BAR | 6 BAR | 10 BAR | 3 BAR | 7 BAR | |
| NV 1 | 8 | 9 | 11 | 14 | 110 Deg | 120 Deg |
| NV 2 | 16 | 18 | 22 | 30 | 90 Deg | 100 Deg |
| NV 3 | 40 | 45 | 55 | 70 | 90 Deg | 100 Deg |
| NV 4 | 150 | 180 | 220 | 300 | 80 Deg | 85 Deg |

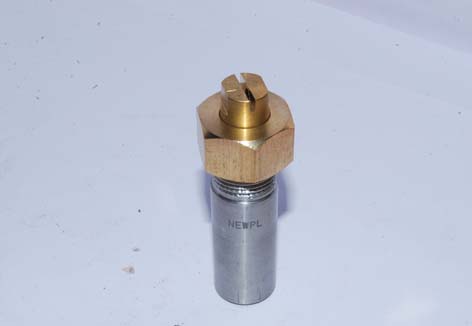

SMALL CAPACITY NOZZLES (ADJUSTABLE TYPE)
End Connection : 1/8” NPT/BSP (M). 3/8” NPT/BSP (M)
Material : BRASS, SS 304/316
Application : Forming Water Screens, Washing Coal, Product Washing, Conveyor Belt Cooling.
| NOZZLE TYPECAPACITY L.P.M. | SPRAY ANGLE | ||||
|---|---|---|---|---|---|
| 40 PSIG | 60 PSIG | 80 PSIG | 40 PSIG | 80 PSIG | |
| NSV - 1 | 1.5 | 2.0 | 2.25 | 110 Deg | 120 Deg |
| NSV - 2 | 3.8 | 4.5 | 5.3 | 110 Deg | 120 Deg |

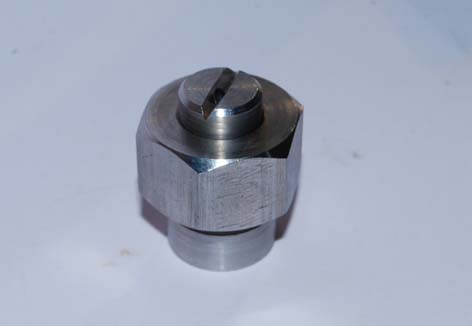

SMALL CAPACITY NOZZLES (FIXED TYPE)
End Connection : 1/8” NPT/BSP (M). 3/8” NPT/BSP (M)
Material : BRASS, SS 304/316
Application : Forming Water Screens, Washing Coal, Product Washing, Conveyor Belt Cooling.
| NOZZLE TYPECAPACITY L.P.M. | SPRAY ANGLE | ||||
|---|---|---|---|---|---|
| 40 PSIG | 60 PSIG | 80 PSIG | 40 PSIG | 80 PSIG | |
| NSV - 1 | 1.5 | 2.0 | 2.25 | 110 Deg | 120 Deg |
| NSV - 2 | 3.8 | 4.5 | 5.3 | 110 Deg | 120 Deg |
| NSV - 3 | 7.5 | 9.5 | 10.6 | 110 Deg | 120 Deg |
